Machine Overview

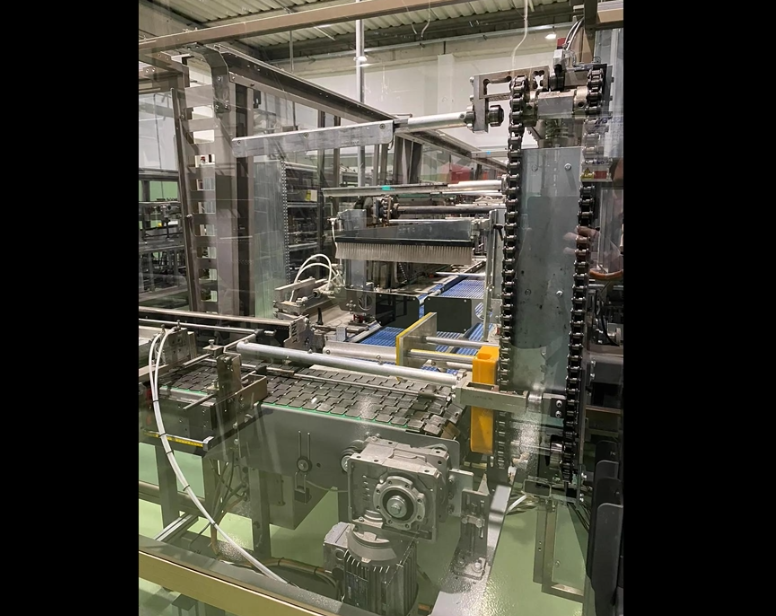

Automatic tray plus film packer ATLANTA COMBIGIOTTO 90-M designed for secondary packaging of bottles with 90° side infeed. The machine forms a corrugated tray and wraps the product with neutral shrink film, then conveys it through a shrink tunnel to obtain stable, retail-ready bundles. Ideal for beverage lines handling PET, glass or HDPE bottles. Reference No. FA56. Year 2008, overhauled in 2022. Condition: Ready for operation. Indicative output up to 25 packs/min, depending on product and format. Operating concept: automatic grouping of bottles, tray forming/loading, film wrapping and shrink-tunnel consolidation. Packaging configuration: Tray + neutral film (shrink). 90° infeed enables compact layouts and easy connection to existing conveyors. KeyTechnical Data Make / Model: ATLANTA COMBIGIOTTO 90-M Operating type: Automatic Infeed orientation: 90° side infeed Packaging: Tray + film (neutral) Tray magazine/formation: Available Nominal capacity: up to 25 bundles/min (format and product dependent) Year: 2008 (overhauled 2022) Condition: Ready for operation PLC: SIEMENS S7 E 300 Automation & Control Industrial PLC-based control with operator HMI for recipe selection, speed setpoints and diagnostics. Inverter-controlled drives for smooth acceleration and product handling. Photoelectric sensors for product presence, jam and film detection. Temperature-controlled shrink tunnel for consistent film performance. Interlocked access doors with safety monitoring for guarded zones. Line Integration Upstream: accepts bottles from conveyor with 90° transfer to the infeed section; integrated selection/divider to create pack patterns before tray loading.Downstream: discharge conveyor after shrink tunnel for connection to inspection, case handling or palletizing. Signals and handshakes typically include start/stop, fault, emergency stop circuit integration and speed reference. Mechanical interface and layout drawings available on request for line engineering.

Condition & Maintenance

General overhaul performed in 2022. Machine presented as ready for operation. Preventive maintenance recommended: periodic checks of film path, knife/sealing components, tray magazine/erector, lubrications and conveyor wear parts. Performance & Versatility Suitable for a wide range of cylindrical or square bottles commonly used in beverages. Typical pack patterns achievable for bottles (e.g., 2×2, 3×2, 4×3, etc.) depending on container size and tray dimensions. Neutral shrink film for clear presentation; tray provides rigidity and stacking strength. Consistent bundle quality via controlled film wrapping and thermal shrink process.More information can be found on the spec sheet.
