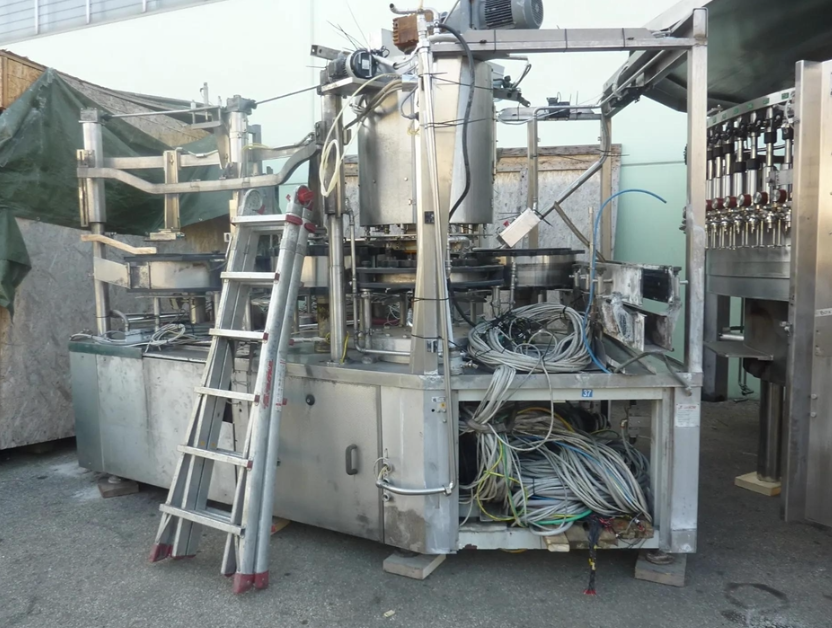

Sarcmi–Simonazzi Bluestar 90/15H p.110 Rinser -Filler–Capper Monoblock

Full Overview with new capper turret YOM 2026

This rotary isobaric Rinser–Filler–Capper Tribloc is a second‑hand, reconditioned solution engineered for PET beverage production. Built in 1999 and fully revised in 2025/2026, it features a brand‑new Adroit capping turret and Siemens automation. Designed for still water and carbonated soft drinks, the unit combines high throughput with precise counterpressure filling, making it ideal for modern industrial packaging plants and used bottling line upgrades.

Technical Specifications & Performance Data

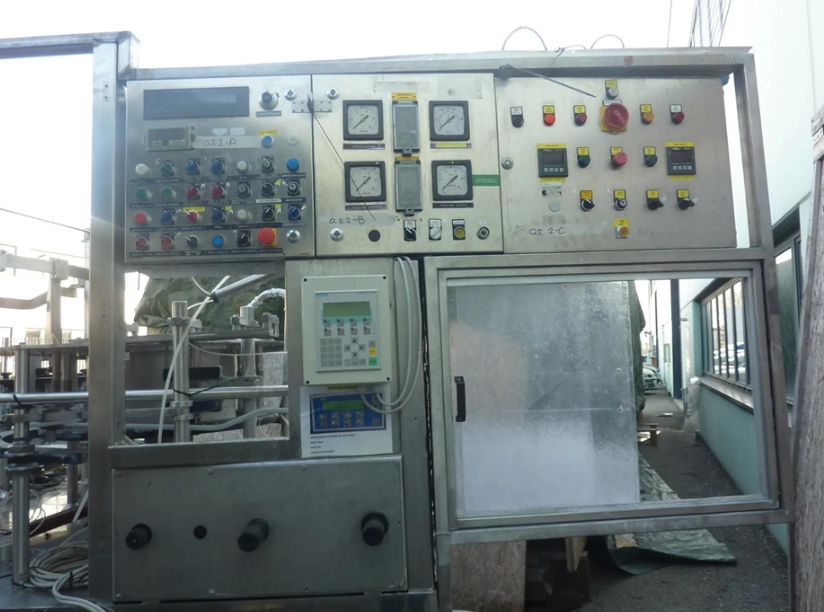

General machine data Type: Rotary Tribloc with starwheel transfer (rinser–filler–capper) Working direction: Counterclockwise Container material: PET Current format: 2,000 ml square bottle Machine pitch: 110 mm Maximum container height: 350 mm Nominal speed: up to 24,000 bph (reference 2.0 L) Hot fill: No | Aseptic: No CO2 system: Yes (isobaric/counterpressure filling) Work table height: 1,100 mm Approx. dimensions: 8,000 × 5,600 × 2,500 mm Approx. weight: 7,500 kg Year of manufacture: 1999 | Major revision: 2025/2026 Rinser Brand: Simonazzi 100 grippers/clamps Filler Technology: Isobaric rotary filler (counterpressure with CO2) Number of filling valves: 90 Optimized for: Still water and soft drinks (CSD) Capper New capping turret: Adroit (installed during 2025/2026 overhaul) Number of capping heads: 15 Cap feeder: 2017Utilities & electrical Power supply: 380 V – 3 Ph – 50 Hz Installed power: 23 kW Compressed air: 6 bar Advanced Automation & Control Systems PLC: Siemens S7 HMI: Siemens operator panel for recipe management, diagnostics and format change supportProcess control: Counterpressure filling with CO2 for stable performance on carbonated beveragesDocumentation: Operation and maintenance manuals available The Siemens control architecture supports consistent cycle synchronization across rinser, filler, and capper, enhancing uptime in second‑hand industrial packaging environments. Production Line Integration Capabilities Upstream/downstream interfaces for conveyors in a used bottling line Starwheel transfer aligned to 110 mm pitch for format handling Compatible with PET bottle supply from depalletizer or blow molder (not included) Cap handling via dedicated feeder (2017) to the new Adroit turret Typical connections: CO2 line for counterpressure, product feed, CIP return/supply, air and electrical This Tribloc is well suited for beverage production plants seeking a compact rinser filler–capper block to increase capacity or replace legacy equipment while maintaining high line efficiency.

Machine Condition & Maintenance History Status:

Ready for operation – reconditioned Major scope: 2025/2026 overhaul with brand‑new Adroit capping turret Additional notes: Cap feeder year 2017; mechanical revision across main carousels Warranty: 12 months on replaced mechanical parts The renovation targets long‑term reliability in second‑hand bottling operations while preserving the original isobaric filling performance of the Simonazzi Bluestar platform.Operational Performance & Versatility Products: Still water and soft drinks (CSD) Reference speed: 24,000 bph at 2.0 L PET Bottle geometry: Current setup on 2.0 L square; change parts may be required for other formats Process: Counterpressure filling ensures minimal dissolved CO2 loss and foam control Thanks to 90 filling valves and 15 capping heads, the machine balances high throughput with controlled handling, supporting stable beverage production with PET containers.More information can be found on the spec sheet.
