Location
Sumerset West, Cape Town, 6665, WC, ZA
Overview
- Brand:
- Product Code/Model : NEW 50-60 BPM
- Category: Packaging Machinery and Equipment
- Product Type: Capping
- Availability: ex stock
Spec Sheets:
Description
Technical Specifications:
Bottle material: PET bottle Cap material: HDPE cap (H:29.5 mm, Dia.: 55 mm) Bottle volume: 188 ml (H:102.3 mm, Dia.: 55 mm)Throughput:
50-60 bottles per minute Semi-automatic bottle loading machine + automatic capping machine + cap sorting loading machineMax. Output: 50-60 BPM Cap diameter: φ15~φ65 mm (can be customized) Cap height: 10~35 mm (can be customized) Bottle height: 50~150 mm (can be adjusted)Power supply: AC220V 50/60Hz/0.55KW Compressed air consumption: 0.6Mpa/150L/Min Physical size: 1,160 ×600 ×1,650 mm Machine weight: 120KGThe caps are supplied by the cap sorting and capping machine, and enter the cap conveying channel from the silo. When the bottle enters the capping station, the servo capping head moves to the capping station according to the set program, and the capping head will take out the cap from the end of cap loading channel. The servo mechanism moves the capping head to the capping station, and the cap-grabbing head begins to rotate and moves downward under the control of the servo. The bottle cap is accurately stuck on the bottle mouth, and the capping is completed by rotating according to the program setting. The capping head releases the cap and disengages to complete a working cycle, and move back to the cap grabbing station again. 1. The double-head capping machine is designed for a low-speed production line, and more capping heads can also be added according to the production speed requirements. 2. The capping strength can be freely adjusted according to different caps. 3. The working stroke of the capping machine can be freely adjusted according to different bottle sizes.Please find more info on the spec sheet.Brand
Name:
Product Code/Model: NEW 50-60 BPM
Related Products
Packaging Machinery and Equipment > case erecting, filling, closeing

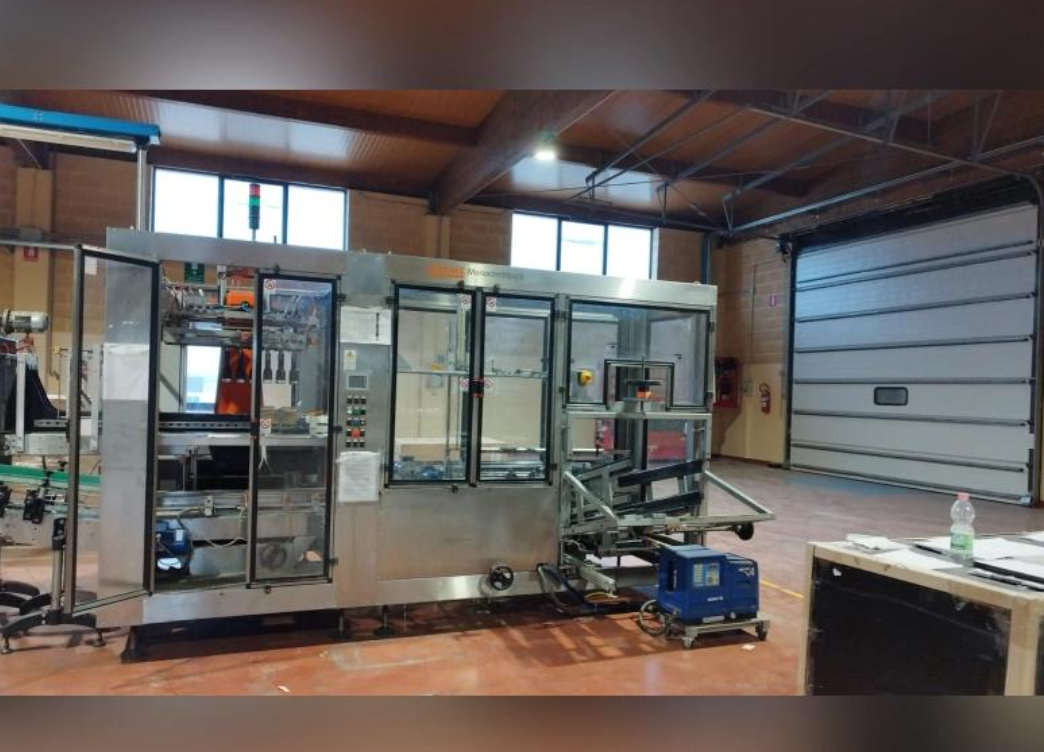

Used Kosme Monocombi 2T Case Packing
