Overview
- Brand: TESK
- Product Code/Model : ES50-16
- Category: Pumps
- Product Type: End Suction Pumps
- Availability: Less than 14 days lead time
Spec Sheets:
Description

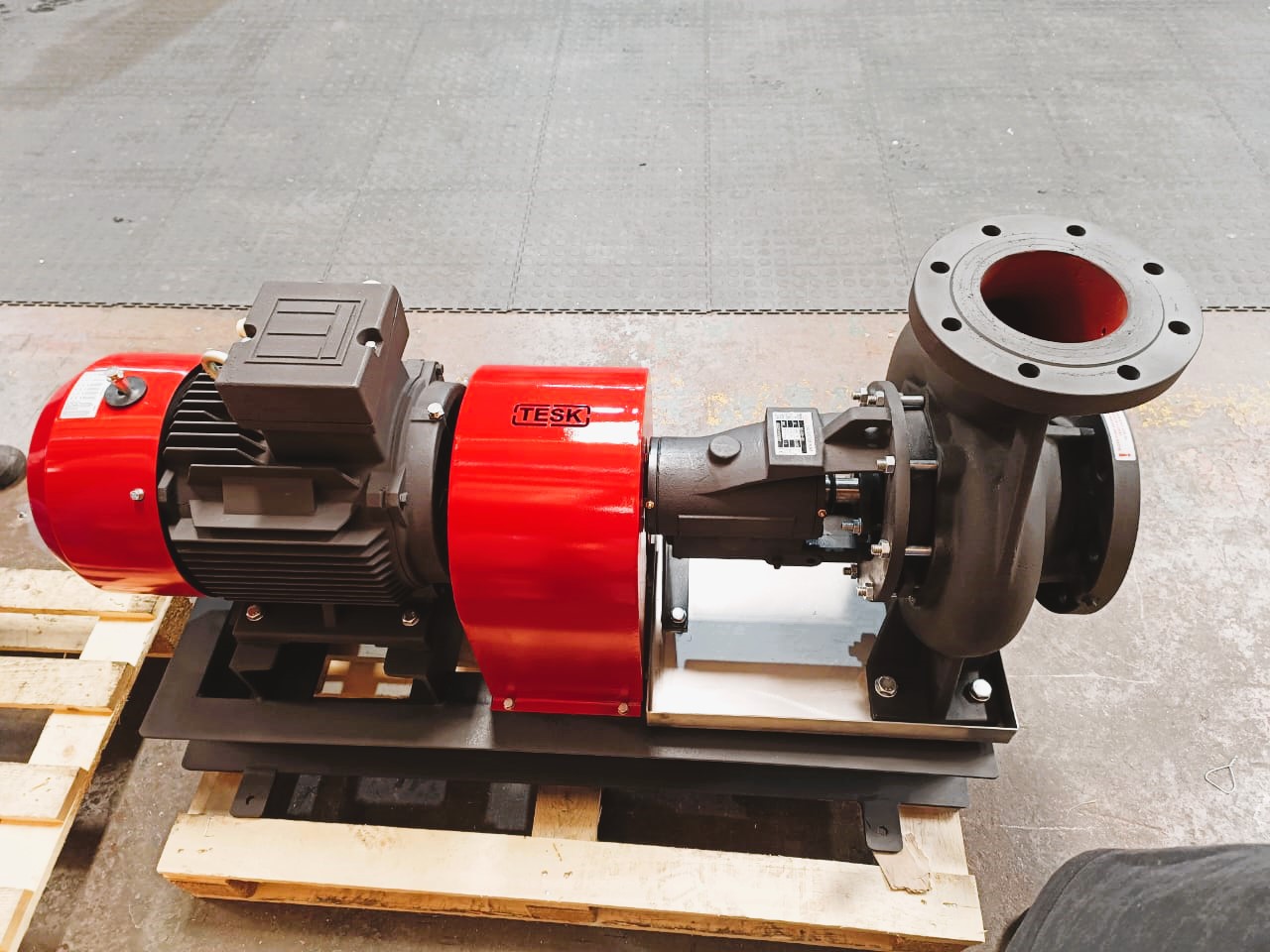

END SUCTION PUMP MOUNTED ON A BASE WITH 11KW ELECTRIC MOTOR
- The ES(S), ESD series can work under high temperature and pressure. They are moreover mainly used for heating, cooling tower, air-conditioning system and can be used as booster pump in water supply system. The pull-back structure of axial inlet and radial outlet ensures a more compact pump structure and pipeline.
MOTOR
- Totally enclosed, fan-cooled,
- 2-pole & 4-pole standard motors.
- Enclosure class: IP55
- Insulation class: F
- Voltage: 3x220-240/380-415V 1x220-240V
- Available with single-phase motors (0.37kW-2.2kW)
PUMP STRUCTURE DESIGN
- Pull-back design with separated motor and pump body. The pump cover bracket acts as a connection between the motor and the pump body and dimensions accord to DIN 24255 and STD BS EN733
- The flange size meets the requirements of PN16 in GB/T17241.6 or ISO7005-2/DIN2501
PUMP OPERATING CONDITIONS
- Pumping liquids which are thin, clean, nonflammable, non-combustible or non-explosive with no solid particles or fibers.
- Max. ambient temperature: +40 C
- Max. altitude above sea level: 1000m
PERFORMANCE CURVES
- The motors used for the measurements are based on 2900 rpm or 1450 rpm.
- Tolerances to ISO 9906 Measurements have been made with airless water a temperature of 20 C
- Curves apply to kinematic viscosity of 1mm /s.
- Select a best efficiency of the pump which is operating within the bold curve of the pump performance.
LIQUID TEMPERATURE
- Normal temperature pump:15 C to 70 C
- Hot temperature pump:-15 C to 105 C
AMBIENT TEMPERATURE
- If the ambient temperature exceeds the 40 ̊C or the pump is installed at an altitude exceeding 1000 m, the motor output power P2 will decrease. In addition cases, it is necessary to use a motor with a higher rated output.
MAXIMUM WORKING PRESSURE
- Normal pressure type: PN 16 bar
- High pressure type: PN 25 bar
END SUCTION 50 - 16 PUMP COMES WITH 2POLE 11KW ELECTRIC MOTOR, MOUNTED ON A BASE
Brand
Name: TESK
Product Code/Model: ES50-16
