Overview
- Brand:
- Product Code/Model : S1516U
- Category: Instrumentation
- Product Type: Temperature instruments
- Availability: ex stock
Spec Sheets:
Description

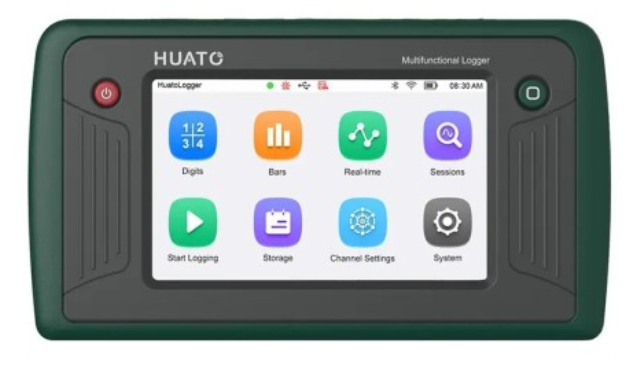

SIXTEEN CHANNEL GRAPHIC MULTI-FUNCTION DATA LOGGER
- Programmable inputs and scaling in engineering units for most common process signals
- Sixteen inputs, each channel individually configurable
- DCV: 0~100mV, 0-5V, 1-5V or 0-10V
- DC mA: 0~10mA, 0-20mA or 4-20mA
- Frequency and Pulse/Count: 0~25KHz / 4,000,000,000 pulses (only on channel 1)
- Thermocouple K, J, E, T, R, S, N, B or C types PT100 2/3/4 wire (Note: if 3 or 4 wire connection then limited to 8 channels)
- Screw terminal connections
- Memory capacity: 32GB internal storage for 5 million records
- Multi-parameter
- 5" capacitive touchscreen LCD display
- Multi-channel digital display, bar chart or real-time graph
- Fast sampling and logging rate programmable from 1 second CSV file data transfer to U-Disk, microSD card or by USB to PC software RJ45 Ethernet port for LAN web interface connection
- Portable size - 190 x 104 x 39mm (With protective sleeve) 5000mAh rechargeable battery for backup c/w carry case, software, USB cable and AC adapter
Brand
Name:
Product Code/Model: S1516U
